DC Fast Charging Station

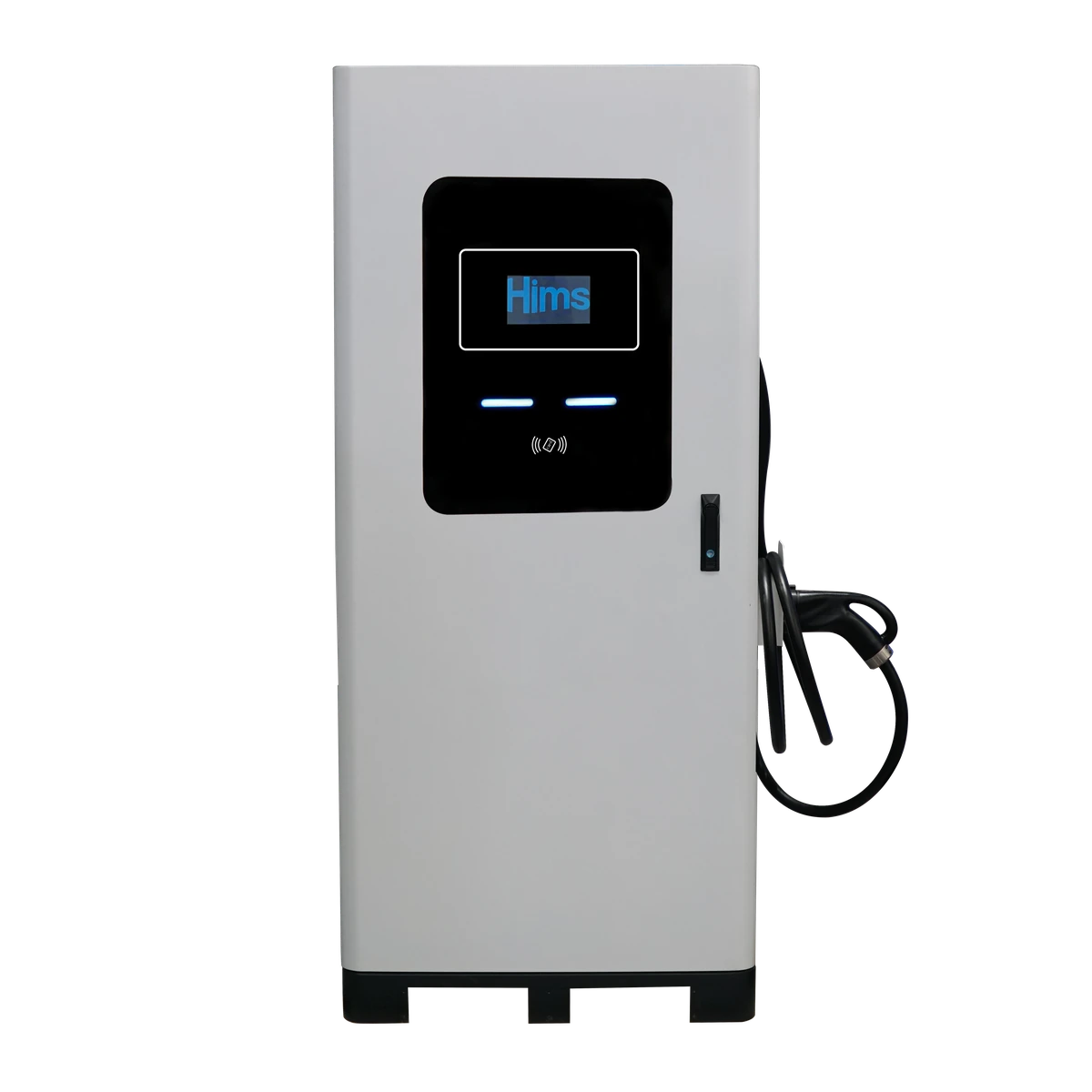

HCDC-S1-60 60kW DC Fast Charging Station – Single Connector
Floor-standing 60 kW DC fast charging station. With its single CCS2 socket (one output), 7" touchscreen, RFID and OCPP 1.6J management, it is designed for commercial charging sites.
We manufacture; our authorized dealers sell and install.
- 1. Choose your product
- 2. Request a quote from a dealer
- 3. Your dealer installs and services it
Power
60 kW
Three-Phase
Durability
IP54, IK10
Smart Control
OCPP 1.6J · RFID (ISO/IEC 14443A/B)
Warranty
2 Years
CE · EMC: EN 61000-6-1/6-3
Features
Full technical data
Technical Specifications
- Maximum DC current (total / single CCS2 connector)
- 200 / 200 A
- About current limits
- The stated values are maximum current limits. Actual output current depends on the vehicle battery voltage, vehicle demand and the station's total power limit.
- Output Power
- 60 kW
- Output Voltage Range
- 200-1000 VDC
- Input
- 380VAC (3 phase)
- Efficiency
- ≥94% of nominal output power
- Connector Type
- CCS2
- Display
- 7" touchscreen LCD
- Protection Class
- IP54 | IK10
- Operating Temperature
- -30°C ~ +55°C
- Protocol
- OCPP 1.6J
- Overvoltage Protection
- 20kA
- Temperature Sensors
- in connector and power electronics
- Standards
- Mode 4 · IEC-61851 · ISO-15118 · DIN 70121
- Number of Sockets: Single (HCDC-S1-60)
- CCS2 single
DC current limits 2
- Maximum DC current (total / single CCS2 connector)
- 200 / 200 A
- About current limits
- The stated values are maximum current limits. Actual output current depends on the vehicle battery voltage, vehicle demand and the station's total power limit.
Electrical 4
- Output Power
- 60 kW
- Output Voltage Range
- 200-1000 VDC
- Input
- 380VAC (3 phase)
- Efficiency
- ≥94% of nominal output power
Mechanical 3
- Connector Type
- CCS2
- Display
- 7" touchscreen LCD
- Protection Class
- IP54 | IK10
Environment 1
- Operating Temperature
- -30°C ~ +55°C
Communication 1
- Protocol
- OCPP 1.6J
Safety & Protection 2
- Overvoltage Protection
- 20kA
- Temperature Sensors
- in connector and power electronics
Standards & Certification 1
- Standards
- Mode 4 · IEC-61851 · ISO-15118 · DIN 70121
Options 1
- Number of Sockets: Single (HCDC-S1-60)
- CCS2 single
Data source
- HIMS 2026 Product Catalogue (PDF)
- HIMS Price List 2026/2
Frequently asked questions
How many kW of power does this device deliver, and does it require a single-phase or three-phase connection?
Operates at 60 kW with a three-phase connection. · Supply voltage: AC 380V – 50/60Hz (AC input) · Maximum DC current (total / single CCS2 connector) 200 / 200 A
Which vehicles is it compatible with?
Compatible with electric vehicles that support the CCS2 (Combo 2) DC fast charging connector.
How long is the warranty period?
Covered by a 2-year warranty.
Does it support remote management and OCPP?
It can be remotely monitored and managed using the following features: OCPP 1.6J, RFID (ISO/IEC 14443A/B)
What are the protection class and installation location?
Protection class: IP54, IK10
